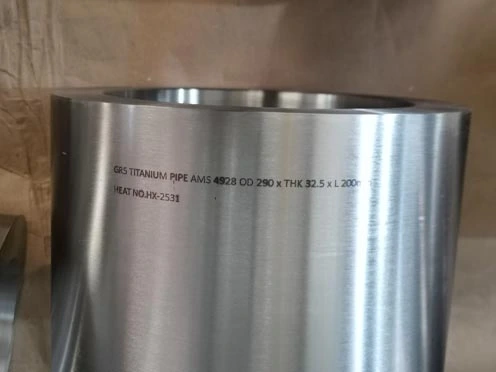

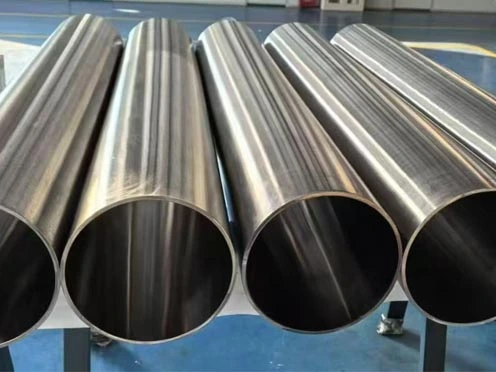

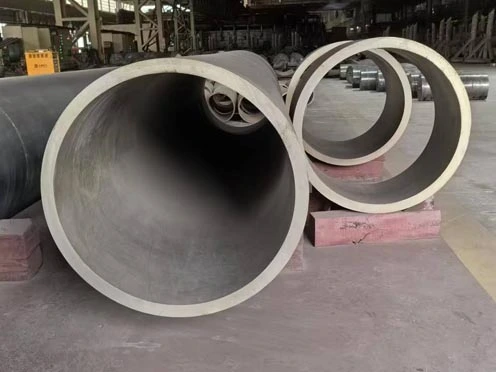

Thick Wall Titanium Tube
Grade: GR1/GR2/GR5/GR7/GR9/GR11/GR12
Standard: ASTM B861
Outside Diameter: 25.4-325 mm
Wall Thickness: 5-50 mm
Length: Max. 12,000mm (custom lengths available for special sizes)
Customization: Cold-rolled and hot-extruded options available
Material Certification: MTC and SGS test reports available
Delivery time: Usually about 20-35 days（According to your order quantity）
Why Heavy Wall? Critical Advantages of Thick Wall Titanium Tubing
Standard titanium tubes lack the collapse resistance and pressure integrity for severe service. As a dedicated thick wall titanium tube manufacturer, TSM produces tubing with extremely high wall-to-OD ratios (≥0.2). These tubes withstand internal pressures beyond 15,000 psi and resist external hydrostatic collapse in subsea environments. Our thick wall titanium tubing also provides superior tolerance for machining, threading, and heavy-wall flanged connections.
OD up to 325 mm | Wall thickness 8 mm – 50 mm | Length up to 8000 mm | Seamless rotary forging + pilgering
Why Heavy Wall? Critical Advantages of Thick Wall Titanium Tubing
Standard titanium tubes lack the collapse resistance and pressure integrity for severe service. As a dedicated thick wall titanium tube manufacturer, TSM produces tubing with extremely high wall-to-OD ratios (≥0.2). These tubes withstand internal pressures beyond 15,000 psi and resist external hydrostatic collapse in subsea environments. Our thick wall titanium tubing also provides superior tolerance for machining, threading, and heavy-wall flanged connections.
High Pressure Strength
Burst pressure exceeds 3x standard thin-wall. Suitable for hydraulic systems, injection lines, and pressure vessels.
External Collapse Resistance
Ideal for deep ocean risers & casing. Thick wall prevents ovalization under 3000m water depth.
Thread & Groove Integrity
Enough wall thickness for API or premium connections, taper threads, and heavy-duty clamp rings.
Thick-walled Titanium Tube Size Range
We manufacture thick-walled titanium tubes from commercially pure titanium (Gr2, Gr3) and alloy titanium (Gr5, Gr7, Gr12). Standard tolerances conform to ASTM B861, and tighter tolerance options are available. The table below lists our standard production size options for thick-walled titanium tubes.
| OD (mm) | Wall Thickness (mm) | Wall/OD Ratio | Length (mm) |
|---|---|---|---|
| 25.4 – 50.8 | 5.0 – 15.0 | 0.19 – 0.30 | 2000 – 6000 |
| 50.8 – 114.3 | 8.0 – 25.0 | 0.15 – 0.35 | 3000 – 7500 |
| 114.3 – 219.1 | 12.0 – 35.0 | 0.12 – 0.28 | 2500 – 6500 |
| 219.1 – 325.0 | 18.0 – 50.0 | 0.12 – 0.22 | 2000 – 5500 |
Need dimensions outside this matrix? Our engineering team supports fully custom thick wall titanium tube orders – just provide drawing and required mechanical properties.
Mechanical Properties (Annealed Condition)
Wall thickness does not reduce mechanical strength. TSM leverages its years of metallurgical experience and quality control system to strictly control the hot rolling and annealing processes, ensuring uniform performance across the entire cross-section.
| Grade | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| Grade 2 (CP) | ≥345 | 275 – 450 | ≥18 | ≤150 |
| Grade 5 (Ti-6Al-4V) | ≥895 | ≥828 | ≥10 | ≤310 |
| Grade 7 (Ti-0.15Pd) | ≥345 | 275 – 450 | ≥18 | ≤150 |
| Grade 12 (Ti-0.3Mo-0.8Ni) | ≥483 | ≥345 | ≥18 | ≤180 |
Pressure rating note: For example, a thick wall titanium tube OD 60mm x WT 12mm (Gr2) has an internal burst pressure > 120 MPa (17,400 psi) based on Barlow formula, making it suitable for ultra-high-pressure hydraulic systems.
Chemical Composition Guarantee – Premium Billet Source
Our thick wall titanium tubing starts from certified VIM-VAR or VAR ingots. Typical chemistry for CP Grades and Ti-6Al-4V meets ASTM B348.
| Grade | Al | V | Fe (max) | C (max) | N (max) | H (max) | O (max) | Pd |
|---|---|---|---|---|---|---|---|---|
| Gr2 | — | — | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | — |
| Gr5 | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 | 0.05 | 0.015 | 0.20 | — |
| Gr7 | — | — | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.12-0.25 |
Thick wall sections from TSM exhibit uniform corrosion resistance across the wall. Our thick wall Grade 7 titanium tube is widely used in hot chloride environments.

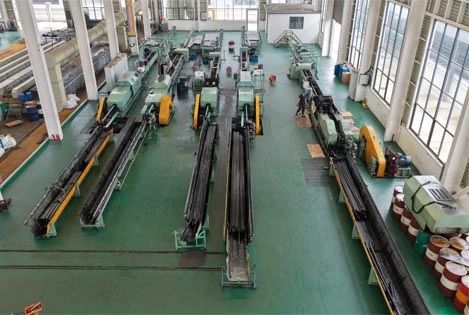

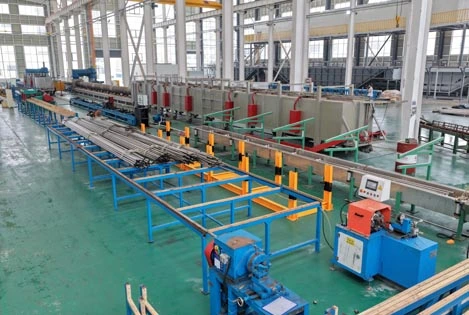

Manufacturing Process: Rotary Forging & Heavy Pilgering
Unlike thin-wall tubes, heavy-wall titanium requires specialized deformation processes. TSM operates a dedicated rotary forge and heavy-duty pilger mill capable of reducing thick-wall billets with precise wall eccentricity control. Process steps: billet inspection → center drilling → rotary forging at 850-950°C → multi-pass pilgering → annealing → pickling → NDT. This yields thick wall titanium tubing with exceptional concentricity (eccentricity ≤ 8%) and crack-free surface.
Hot Rotary Forge
Reduces billet OD while maintaining thick wall integrity; eliminates porosity.
Cold Pilgering (Heavy)
Precision cold-work for heavy wall tube dimensional accuracy up to 6m length.
100% Ultrasonic & Eddy Current
Full body NDT detects any subsurface flaws in thick sections.
Custom Supply – Your Partner for Heavy Wall Titanium Solutions
As a flexible thick wall titanium tube supplier, we provide:
- Non-standard dimensions: any OD/WT combination, including metric/heavy wall schedules.
- Small to large volumes: MOQ 100kg, production runs up to 80 tons.
- Fully machined ends: threading (NPT, BSP), grooving, beveling, or custom flanges welded.
- Special grades: Gr16, Gr23 (ELI), or beta-C titanium for extreme sour service.
- Short lead time: 30 days for custom thick wall tubing; stock items in 7 days.
Send your drawing to our engineering team – we will recommend optimal alloy, heat treatment, and cost-effective production route. TSM is a trusted thick wall titanium tube manufacturer China serving oil majors, subsea OEMs, and hydraulic integrators worldwide.
Industry Applications
Oil & Gas Downhole
Heavy-wall tubing for HPHT wells, production packers, and choke line kill systems. NACE MR0175 compliance.
Deep Sea Subsea
Hydraulic control lines, umbilical tubes, and riser inner liners requiring collapse resistance.
Heavy Hydraulic Cylinders
Thick wall titanium barrel tubes for lightweight, corrosion-proof hydraulic cylinders in offshore equipment.
Chemical Reactor Coils
High-pressure reactor heating/cooling coils where thick wall prevents leaking due to thermal cycling.
Quality Assurance – Full NDT on Every Heavy Wall Tube
➢ Ultrasonic Testing for lamination and wall thinning.
➢ Eddy Current Array for near-surface flaws.
➢ PMI (XRF) and mechanical testing per lot.
➢ Dimensional inspection with laser micrometers.
All documentation including EN 10204 3.1, NDT reports, and heat treatment charts are provided with each shipment. We are ready for third-party inspection (SGS, BV, ).

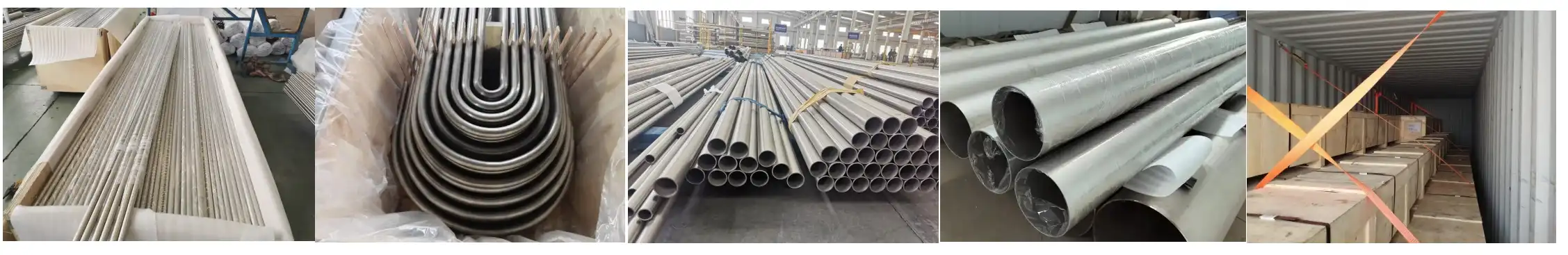

Shipping & Export – Heavy-Duty Packaging for Thick Wall Tubes
Thick wall titanium tubes are packed in steel-framed wooden crates with inner foam and rust-preventive paper. Each bundle labeled with grade, heat number, and dimensions. TSM organizes sea freight (FCL/LCL) from Shanghai or Qingdao port to all major destinations. We supply export documentation including origin certificate, commercial invoice, and packing list.
Why Choose TSM Technology Co., Ltd.?
18 years of experience in manufacturing titanium tubes, 100% non-destructive testing, ISO9100/AS9100D certification. Located in Shaanxi's Titanium Valley, we combine the advantages of raw material sourcing and supply chain clusters. Whether you need initial prototype purchases or annual contracts, we are your reliable Chinese supplier of thick-walled titanium tubes.
