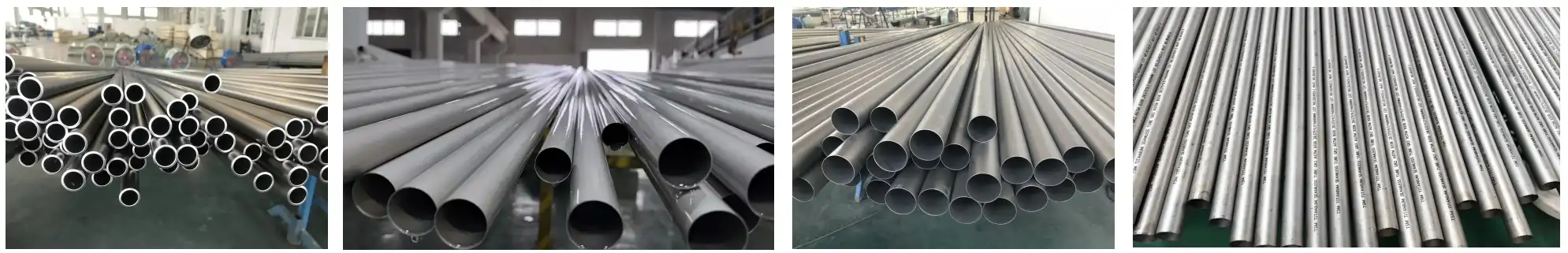

Titanium Seamless Tube
Grade: GR1/GR2/GR5/GR7/GR9/GR11/GR16/GR17
Standard: ASTM B338/ASME SB338/AMS 4928
Outside Diameter: 3.0-150 mm
Wall Thickness: 0.3-10 mm
Length: Max. 15,000mm (custom lengths available for special sizes)
Customization: Cold-rolled and hot-extruded options available for high-pressure and precision applications
Material Certification: MTC and SGS test reports available
Delivery time: Usually about 10-25 days（According to your order quantity）
Titanium Seamless Tube | Engineered for Extreme Reliability
What are Titanium Seamless Tubes?
The Titanium Seamless Tubes are cylindrical, hollow structures made from pure titanium or titanium alloys without any welding seams. These tubes offer an exceptional combination of strength, corrosion resistance, and lightweight properties, making them ideal for critical applications in various industries.
Why TSM Is Your Trusted Seamless Titanium Tube Supplier?
Full Traceability & Certifications
Every seamless titanium pipe lot is accompanied by EN 10204 3.1 certificate, chemical/mechanical reports, and UT/ET non-destructive test records. Mill certifications available for all grades.
Fast & Flexible Supply Chain
Located in Baoji Titanium Industrial Park, we maintain huge stock of billets. Typical lead time: 20-30 days for custom seamless tube, 7 days for standard sizes. China titanium seamless tube manufacturer with global export experience.
In-house R&D & Customization
Need non-standard OD, thin wall or special length? Our technical team supports custom titanium seamless pipe from small batch (50kg) to mass production. Tight tolerances up to ±0.05mm.
Competitive Mill Pricing
Direct factory pricing, no intermediaries. Ideal for buy seamless titanium tube for large-scale projects – save 15~25% compared to western distributors.
Key Specifications – Seamless Titanium Tube Dimensions & Tolerances
As a professional seamless titanium tube manufacturer, we comply with ASTM B338, ASTM B861, and custom requirements. Below standard size range available for immediate inquiry:
| Parameter | Range / Standard | Tolerance |
|---|---|---|
| Outside Diameter (OD) | 6.0 mm – 219.1 mm (1/4" – 8") | ±0.05 mm (OD ≤ 25.4mm) / ±0.1mm (OD >25.4mm) |
| Wall Thickness (WT) | 0.5 mm – 15.0 mm | ±10% (standard) / ±5% (precision) |
| Length | Up to 15,000 mm (random or fixed) | +10 / 0 mm |
| Straightness | 0.5 mm per 1000 mm length | ASTM B338 compliant |
| Surface Finish | Pickled, polished, or bright annealed | Ra ≤ 1.6μm upon request |
Other dimensions like 2" seamless titanium pipe, 3" schedule 10, or metric sizes can be customized. Supply seamless titanium pipe with NACE MR0175 for sour service available.
Available Grades & Chemical Composition (ASTM)
We manufacture titanium seamless tube in commercially pure grades and alpha-beta alloys to meet diverse corrosion resistance and strength demands.
| Grade | N (max) | C (max) | H (max) | Fe (max) | O (max) | Al | V | Pd |
|---|---|---|---|---|---|---|---|---|
| Gr1 (CP1) | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | - | - | - |
| Gr2 (CP2) | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | - | - |
| Gr5 (Ti6Al4V) | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | - |
| Gr7 (Ti-0.15Pd) | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | - | 0.12-0.25 |
| Gr12 (Ti-0.3Mo-0.8Ni) | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | - | - | - |
Other grades: Gr9 (Ti3Al2.5V), Gr23 (ELI), Gr16 also available. For high-temperature or reducing acid environments, our seamless titanium tube for sale includes Gr7/Gr12 with superior crevice corrosion resistance.
Mechanical Properties of Seamless Titanium Pipe
| Grade | Tensile Strength (MPa) | Yield Strength 0.2% (MPa) | Elongation (%) | Hardness (HRC/HB) |
|---|---|---|---|---|
| Gr1 | ≥240 | 170-310 | 24 | ≤120 HB |
| Gr2 | ≥345 | 275-450 | 20 | ≤150 HB |
| Gr5 | ≥895 | ≥828 | 10 | 32-36 HRC |
| Gr7 | ≥345 | 275-450 | 20 | ≤150 HB |
| Gr12 | ≥483 | ≥345 | 18 | ≤200 HB |
Product Standards
- ASTM B338/ASME SB-338/ASTM B861
Quality Assurance & Non-Destructive Testing (NDT)
Every seamless titanium tube leaving our Shaanxi facility undergoes multi-step inspection. We utilize automated UT immersion systems for longitudinal and transverse defects, plus eddy current according to ASTM E215. Dimensional gauging, roughness test, and intergranular corrosion test on request.
Inspection process includes:
Chemical analysis (OES spectrometer)
Tensile & hardness test (room & elevated temperature)
Flattening / Flaring / Reverse flattening
PMI (positive material identification) 100%
Critical Applications: Where TSM Seamless Titanium Tube Excels
Oil & Gas / Offshore
Seamless titanium pipe for heat exchangers, risers, and subsea equipment. Exceptional resistance to seawater and H2S.
Power Generation
Condenser tubing, cooling systems in nuclear and fossil power plants. Long service life reduces downtime.
Chemical Processing
Chlor-alkali, urea, desalination plants. Our titanium seamless tube resists pitting in aggressive chloride media.
Aerospace & Defense
Hydraulic lines, airframe structures requiring high strength-to-weight ratio. Gr5 seamless titanium tube available.
Custom Manufacturing & Tailored Supply – Your OEM Partner
As an experienced titanium seamless tube manufacturer in China, we support custom OD, wall thickness, special lengths, annealing conditions, and end preparations (beveled, plain, threaded). Whether you need seamless titanium pipe for sale for a pilot project or bulk order, our engineering team provides CAD drawings, 3D modeling support, and strict QA plan. Minimum order quantity can be as low as 100 kg for common grades.
| Cold Pilgering | Rotary Forging | Ultrasonic Testing | Eddy Current | Hydrostatic Test |

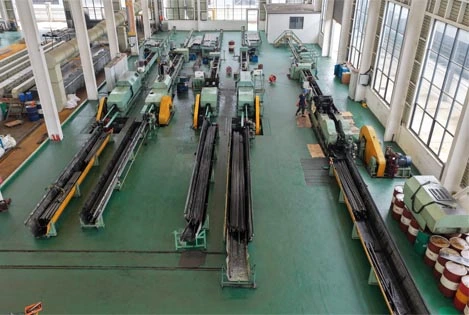

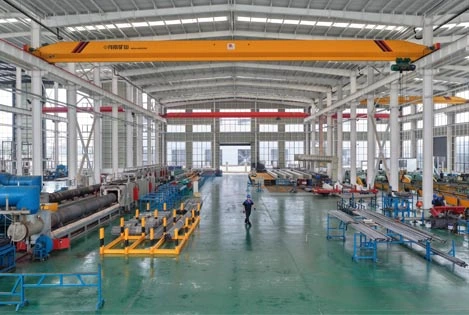

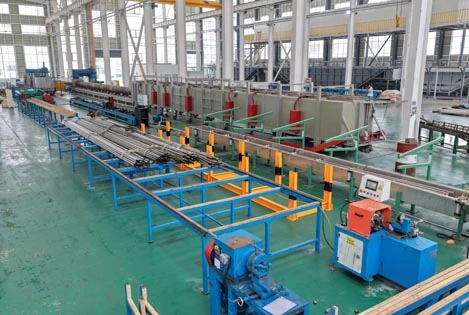

Our Factory
Packaging and Shipping
Each seamless titanium tube is protected with plastic end caps, wrapped in foam or paper, and packed in seaworthy plywood cases or steel crates for container shipping. We handle all documentation: packing list, commercial invoice, certificate of origin, and fumigation-free declaration. Ports: Shanghai, Qingdao, Tianjin. Door-to-door service available for urgent requirements.
Request a Quote – Your Direct Seamless Titanium Tube Supplier
Ready to buy seamless titanium tube with competitive pricing and full technical support? Fill out our quick RFQ form or contact our sales engineers. We reply within 8 business hours with detailed quotation, delivery time, and certificate samples.
Get Custom Quote → Call Sales: +86 18979046033
For urgent requirements: Mention "Seamless Titanium Tube" for priority production scheduling. Custom sizes, special grades, small trial orders welcomed.
FAQ
Q1: What grades of titanium do you offer for seamless tubes?
A1: We provide Grade 1, 2, 3, 4, 5 (Ti-6Al-4V), and 7 products.
Q2: Can you produce custom sizes of products?
A2: Yes, we offer customization services to meet specific dimensional requirements.
Q3: What is the lead time for products?
A3: Lead times vary based on specifications and quantity. Standard orders typically ship within 2-4 weeks.
Q4: Do you provide material certifications with your products?
A4: Absolutely. We provide full material traceability and test certifications with every order.
Q5: How do you ensure the quality of your products?
A5: We employ rigorous quality control measures, including NDT, chemical analysis, and mechanical testing, adhering to international standards.
Contact Us
Ready to elevate your projects with our superior Titanium Seamless Tubes?
Contact our expert team at info@tsm-technology.com for personalized assistance and quotes. Trust TSM Technology for unmatched quality, reliability, and innovation in titanium solutions.
